Y951 Smart Distribution Box Specification

Contents

1. Overview
2. Ordering Information
3. Key Features
4. Selection Guide
5. Technical Specifications
6. Function and Operation
7. Installation
8. Important Notes

---

1. Overview

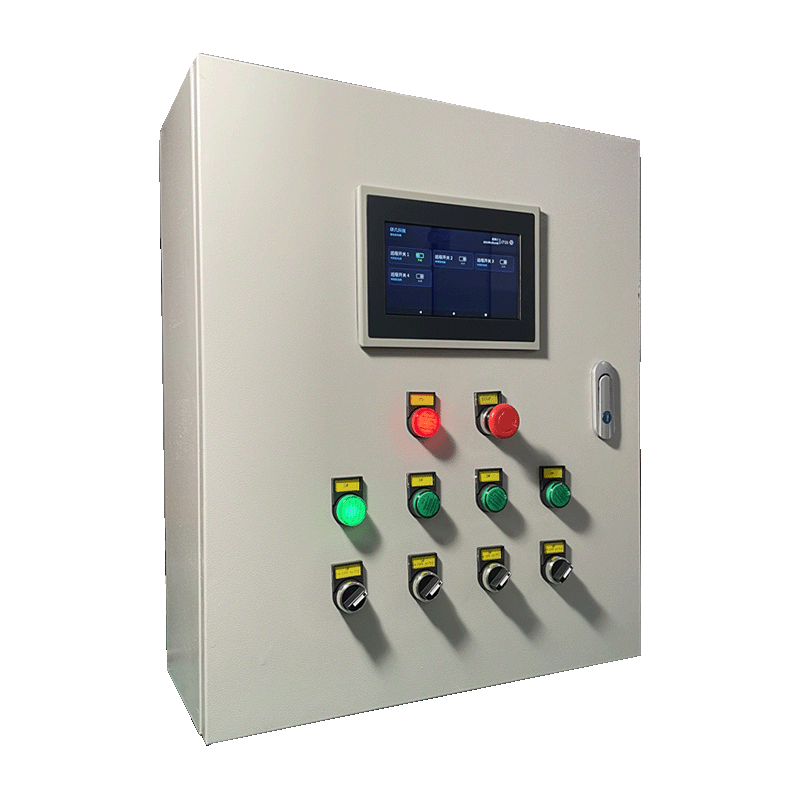

The Y951 is a series of smart distribution boxes designed for centralized power supply and remote control across multiple circuits. Supporting 2 to 16 circuits, the series offers various communication options: -G for 4G, -W for WiFi, and -R for RJ45 Ethernet. For example, the Y951-4-G is a 4-circuit 4G smart distribution box.

Built on an industrial-grade architecture, the Y951 integrates remote control, scheduled tasks, status monitoring, and electrical protection. It is ideal for aquaculture, livestock farming, greenhouses, pump/valve control, and environmental monitoring.

Users can remotely monitor device status and control individual circuits via the platform or mobile app. Optional features include current monitoring, power failure/phase loss detection, audible/visual alarms, and integrated displays.

Operating Principle

• The box connects to a 220V/380V AC power source to provide centralized distribution.
• An internal smart control unit communicates with the platform via 4G, WiFi, or Ethernet.
• Users issue start/stop, timing, or linkage commands through the cloud platform.
• Each circuit operates independently and provides real-time status feedback.
• The system supports local automatic linkage, remote manual control, and cloud-based automation.

Application Scenarios

• Centralized power supply for pumps, fans, aerators, and lighting.
• Automated management of agricultural and greenhouse environmental equipment.
• Unattended power distribution for construction sites and remote stations.
• Unified operation and maintenance (O&M) for distributed power facilities.

---

2. Ordering Information

2.1 Model Naming

Y951-xx-C
  │   │  └── C: Communication (G / W / R)
  │   └───── xx: Number of circuits (2~16)
  └───────── Y951: Smart Distribution Box Series

2.2 Communication Suffix

Suffix	Communication	Description
-G	4G	Best for remote sites without wired internet
-W	WiFi	Best for areas with existing wireless network coverage
-R	RJ45 Ethernet	Best for stable wired environments like server rooms

2.3 Typical Models

Model	Circuits	Description
Y951-2-G	2	2-circuit 4G smart distribution box
Y951-4-G	4	4-circuit 4G smart distribution box
Y951-4-W	4	4-circuit WiFi smart distribution box
Y951-8-R	8	8-circuit Ethernet smart distribution box
Y951-12-G	12	12-circuit 4G smart distribution box
Y951-16-R	16	16-circuit Ethernet smart distribution box

2.4 Selection Checklist

Item	Recommendation
Model	Y951-xx-C, confirm circuit count and communication
Input Voltage	220V AC or 380V AC
Load per Circuit	Standard 2.2 kW; customization available for higher loads
Communication	4G, WiFi, or RJ45 Ethernet
Enclosure Material	Galvanized steel or Stainless steel
Dimensions	Standard or project-specific sizes
Mounting	Wall-mounted or Pole-mounted
Extensions	Current monitoring, phase loss detection, GPS, etc.
Control Logic	Remote start-stop / Timing / Linkage / Reversing control

2.5 Package Contents

Quantity	Item
1	Y951 Smart Distribution Box
1	Product Documentation
1	Warranty Information

Optional Accessories: 7-inch display, current monitoring module, phase loss module, audible/visual alarm, GPS module.

---

3. Key Features

1. Flexible Circuit Count — 2 to 16 circuits to suit different project scales.
2. 2.2 kW Standard Load — Ideal for pumps, fans, and lighting; supports higher load customization.
3. Versatile Communication — Supports 4G, WiFi, and RJ45 Ethernet for diverse site conditions.
4. Multi-Mode Control — Supports manual, remote, scheduled, and cloud-linked control.
5. Modular Design — Organized internal wiring for easy installation and maintenance.
6. Robust Protection — Features overload, short-circuit, and high-voltage protection; uses 12~24V DC safe control voltage.
7. Expandable Monitoring — Optional current, power failure, and phase loss monitoring.
8. Cloud Visualization — Uploads usage data and logs for graphical analysis and O&M tracking.
9. Custom Enclosures — Durable galvanized or stainless steel boxes tailored to the environment.

---

4. Selection Guide

4.1 Model Comparison

Model	Circuits	Comm.	Std. Load	Dimensions (Ref.)	Typical Use Case
Y951-2-G	2	4G	2.2 kW	500 × 600 × 200 mm	Small pumps, lighting
Y951-4-W	4	WiFi	2.2 kW	400 × 500 × 200 mm	WiFi-covered facilities
Y951-6-G	6	4G	2.2 kW	500 × 600 × 200 mm	Medium-scale fan/pump control
Y951-8-R	8	RJ45	2.2 kW	600 × 800 × 200 mm	Server rooms, industrial zones
Y951-12-G	12	4G	2.2 kW	Custom	Large-scale centralized control
Y951-16-R	16	RJ45	2.2 kW	1500 × 700 × 370 mm	Complex facility distribution

4.2 Quick Selection Tips

1. For 2–4 circuits in tight spaces, choose the Y951-2-* or Y951-4-* series.
2. Use -G (4G) for remote sites or areas without wired internet.
3. Use -W (WiFi) for indoor sites with stable wireless LAN.
4. Use -R (Ethernet) for server rooms or industrial networks.
5. If the load exceeds 2.2 kW or you require specific monitoring/display features, contact us for customization.

---

5. Technical Specifications

5.1 Electrical Parameters

Parameter	Specification
Input Voltage	220V / 380V AC
Circuits	2 to 16
Load per Circuit	2.2 kW (Standard)
Max Load	Customizable
Control Voltage	12~24V DC
Total Current	20A (Standard; Customizable)

5.2 Communication and Data

Parameter	Specification
Communication	4G / WiFi / RJ45 Ethernet
Model Suffix	-G / -W / -R
Data Transfer	Wired or wireless network
Upload Interval	Default: 1h (Adjustable)
Remote Access	Platform / Mobile App / WeChat Mini Program
Control Modes	Remote Start/Stop, Scheduling, Linkage

5.3 Protection Indicators

Parameter	Specification
Under-voltage	170V ±5% (Optional)
Over-voltage	270V ±5% (Optional)
Action Time	≤100 ms
Detection Time	≤100 ms
Short-circuit	≤6000 A
Fault Notification	App alert; optional audible/visual alarm
Self-test	Closed-loop control with individual circuit self-testing

5.4 Environmental and Mechanical

Parameter	Specification
Operating Temp	-40°C to 85°C
Color	Gray / Off-white (Variant dependent)
Material	Galvanized steel (Default) / Stainless steel (Optional)
Dimensions	Dependent on circuit count and configuration
Mounting	Wall-mounted / Pole-mounted

---

6. Function and Operation

6.1 Core Functions

Function	Description
Remote Control	Start or stop individual circuits remotely
Scheduling	Automatically switch circuits based on set time plans
Cloud Linkage	Trigger actions based on external sensor data
Logs	View real-time status and historical operation records
Security Alerts	Push notifications for threshold violations or faults

6.2 Operation Logic

1. Power on the device and connect to the network. Check online status on the platform.
2. Issue commands (on/off/timer) for specific circuits via the app.
3. Set thresholds for sensors to trigger automatic equipment operation.
4. If protection is enabled, the system automatically cuts power during overload, short-circuit, or voltage anomalies and reports the status.

6.3 Controls and Indicators

• Emergency Stop — Quickly cuts control power during emergencies.
• Run Indicator — Lights up when the circuit is active.
• 3-Position Switch — Manual On / Manual Off / Auto Control.
• 4-Position Reversing Switch — For motors; supports Stop / Reverse / Forward / Auto.

---

7. Installation

7.1 Mounting Methods

1. Wall Mounting — Secure to the wall using expansion bolts.
2. Pole Mounting — Suitable for outdoor or field installations with pole supports.

7.2 Installation Tips

1. Install in a ventilated area that is easy to observe and maintain.
2. For outdoor use, ensure secure mounting and use waterproof cable glands for entry/exit points.
3. Keep wireless antennas away from metal enclosures and high-current cables to avoid interference.
4. Verify circuit loads, phase sequence, and protection settings before powering on.
5. Do not modify internal wiring; contact professional personnel for adjustments.

---

8. Important Notes

1. Model ID — xx denotes circuits, C denotes communication. Supports 2–16 circuits.
2. Load Limit — Standard load is 2.2 kW per circuit. Confirm customization for higher loads.
3. Comm. Variants — -G is 4G, -W is WiFi, -R is RJ45 Ethernet.
4. Customization — Enclosure size, material, color, and components are customizable.
5. Electrical Safety — Installation and maintenance must be performed by qualified professionals.
6. Maintenance — Periodically inspect wiring, contactors, and breakers; keep the box free of dust.
7. Optional Features — Current monitoring, GPS, and displays must be specified during ordering.

---

• Manufacturer: Hunan YenGear Tech Co., Ltd.
• Address: Room 21014, Building 1, Fudi Xingguang Tiandi, Yingxin Road, Yuhua District, Changsha, Hunan, China
• Email: [email protected]
• Website: www.yengear.com
