Y811-75AV — Multi-Color Sounder-Beacon Specification
Product series: Industrial Audible & Visual Alarm
This specification covers one YenGear model and two configurations.
1. Product definition
Y811-75AV is a compact multi-color sounder-beacon family. The public model covers three-color and seven-color configurations with the same 75-class product form.
2. Ordering configurations
| YenGear model | Configuration | Light colors |
|---|---|---|

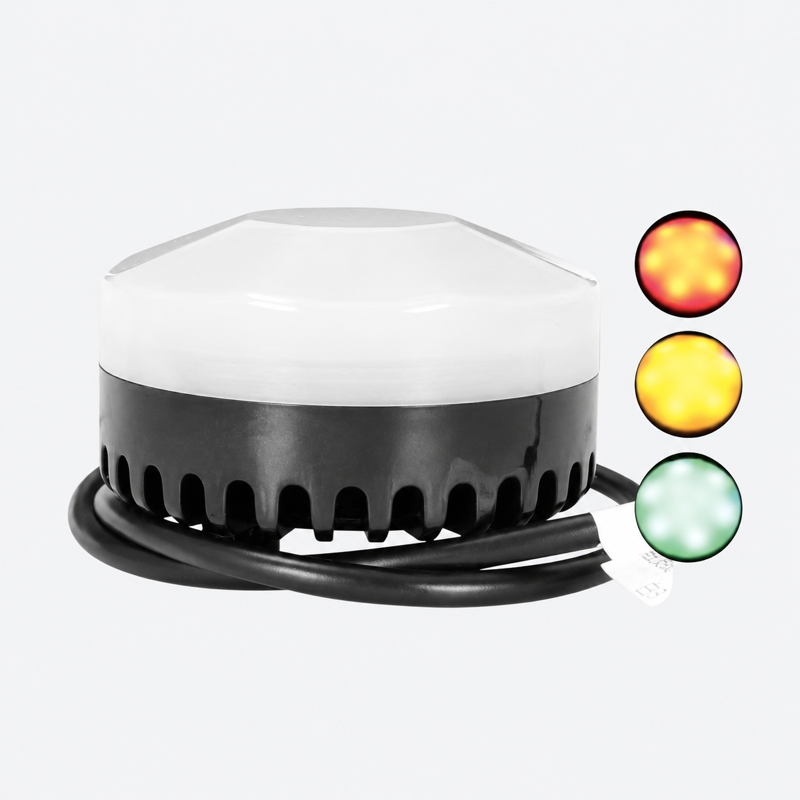

| Y811-75AV | Three-color | Red, yellow, and green |

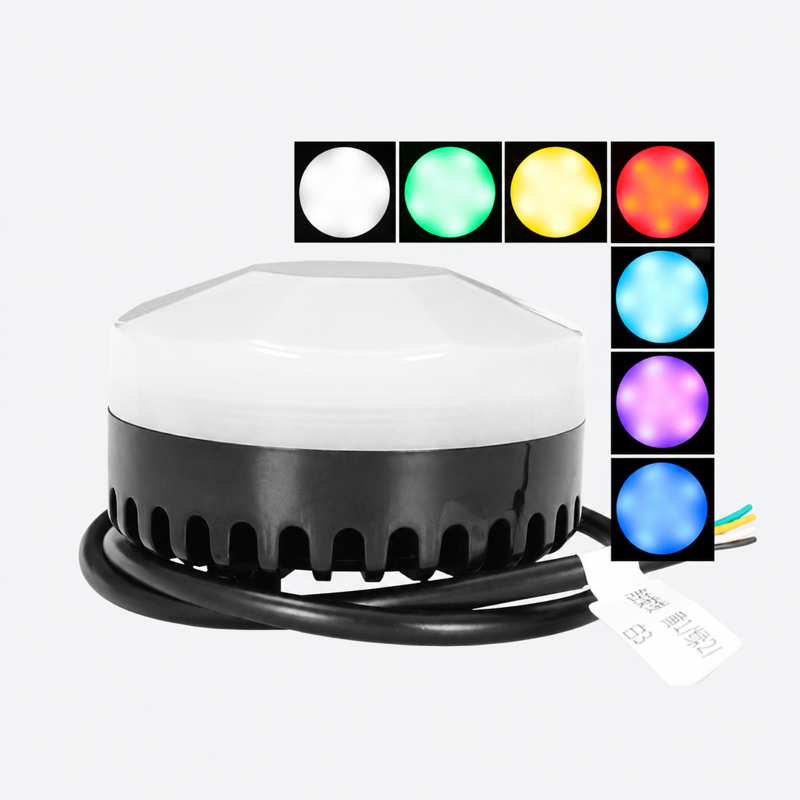

| Y811-75AV | Seven-color | Seven-color configuration |
3. Technical specifications
| Parameter | Three-color configuration | Seven-color configuration |
|---|---|---|
| Product function | Audible-visual alarm | Audible-visual alarm |
| Control | Three switch inputs and standard Modbus | Three switch inputs and standard Modbus |
| Output power | 5 W | 5 W |
| Memory | 8 MB | 8 MB |
| Light colors | Three-color | Seven-color |
| Light patterns | Steady, slow flash, and rapid flash | Catalog entry does not state the complete pattern list |
| Supply | DC 12-24 V or AC 220 V in the catalog; the manual states DC 9-30 V for the three-color build | DC 12-24 V or AC 220 V |
| Enclosure material | ABS | ABS |
| Mounting | Screw or magnetic mounting | Screw or magnetic mounting |
| Dimensions | 49 x 75 mm | 49 x 75 mm |
| Ingress protection | IP55 in the catalog; IPX65 in the supplied manual | IP55 in the catalog |
4. Audio specifications
The supplied manual states MP3 audio, a bit rate of up to 192 kbps, a frequency response of 70 Hz to 13 kHz, and a volume setting range of 0-100. It also states that the unit has built-in 8 MB flash memory and supports USB replacement of the alarm audio files.
These audio values are verified for the three-color manual configuration. Confirm that the seven-color build uses the same audio hardware before publishing the values as a guaranteed common specification.
5. Communication
The supplied manual documents Modbus RTU over RS485. The supplied default parameters are address 01, baud rate 9600, 8 data bits, 1 stop bit, and CRC16 checking. The manual identifies the yellow conductor as A+ and the green conductor as B-.
The manual documents command groups for file playback, song playback, volume, baud rate, device address, playback status, file count, current track, and light state. The light state can be combined with playback through the command format described in the Y811 technical manual.
6. Installation notes
- Switch off power before wiring.
- Use the supply range printed on the ordered unit. Do not resolve the catalog/manual voltage difference by assumption.
- Use screw or magnetic mounting only where the surface and vibration level are suitable.
- Keep RS485 wiring separated from high-power switching wires.
- Use a unique device address on a shared bus.
- Replace audio files with the unit powered off and disconnect the USB cable before powering the unit again.
7. Confirmation items
- Final supply range and whether AC 220 V is fitted on the ordered configuration
- Final ingress-protection marking because the catalog and supplied manual use different ratings
- Whether the seven-color configuration supports the same MP3 and USB functions
- Exact color command values for the seven-color configuration
- Final wire colors, connector, and mounting drawing
8. Source basis
- Supplied product catalog, page 17
- Supplied Chinese protocol manual for the three-color configuration
