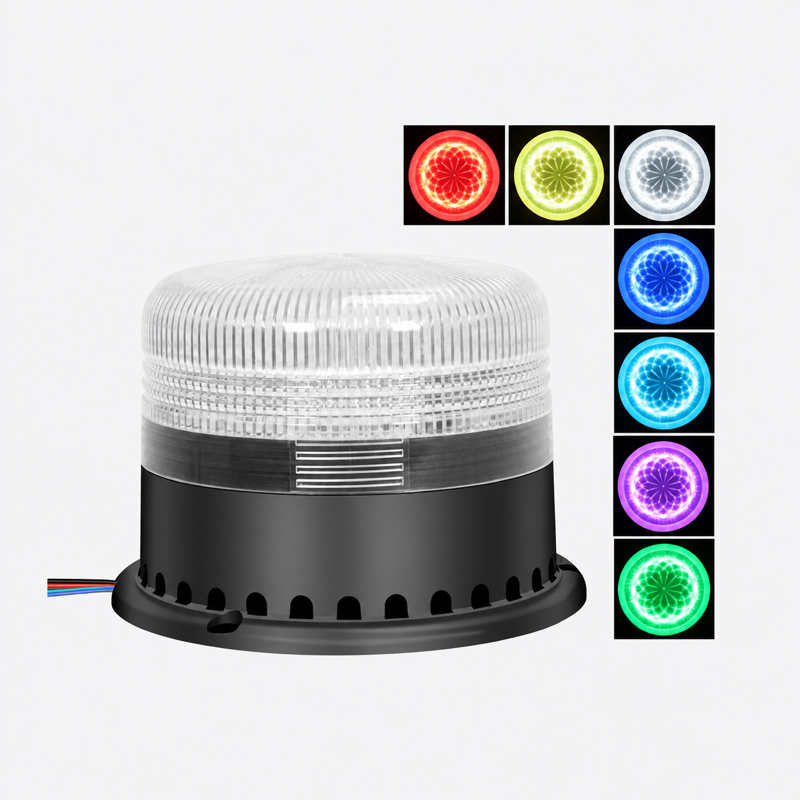

Appearance
Y811-95AV — Seven-Color Sounder-Beacon Specification
Product series: Industrial Audible & Visual Alarm
This specification covers one YenGear model and one configuration.
1. Product definition
Y811-95AV is a low-profile seven-color sounder-beacon with RS485 and RS232 interfaces listed in the supplied catalog. It provides three switch inputs, a 10 W audio output, and a 94 x 76 mm enclosure.
2. Ordering configuration
| YenGear model | Configuration |
|---|---|
| Y811-95AV | Seven-color RS485 / RS232 sounder-beacon |
3. Technical specifications
| Parameter | Specification |
|---|---|
| Product function | Seven-color audible-visual alarm |
| Light colors | Seven-color configuration |
| Trigger inputs | Three switch inputs |
| Communication | RS485 / RS232 |
| Output power | 10 W |
| Memory | 8 MB |
| Supply | DC 12-24 V or AC 220 V |
| Enclosure material | ABS |
| Mounting | Screw mounting |
| Dimensions | 94 x 76 mm |
| Ingress protection | IP65 |
4. Integration notes
The supplied catalog confirms RS485 and RS232 interfaces but does not include a protocol map, default serial parameters, connector pinout, or the seven-color command table. Confirm these items against the ordered hardware before software integration.
Use the Y811-95AV technical manual for bus wiring, commissioning, and troubleshooting. Do not assume that the Modbus command register used by Y811-52V or Y811-75AV applies to Y811-95AV.
5. Confirmation items
- RS485 protocol and whether the interface uses Modbus RTU
- RS232 electrical level, connector, and pinout
- Default address, baud rate, data format, and CRC behavior
- Exact three-input wiring and trigger logic
- Seven-color command values and light patterns
- Final enclosure dimensions and mounting drawing
6. Source basis
- Supplied product catalog, page 17
- Product series: Industrial Audible & Visual Alarm
- Model: Y811-95AV
- Y811-95AV Technical Manual
