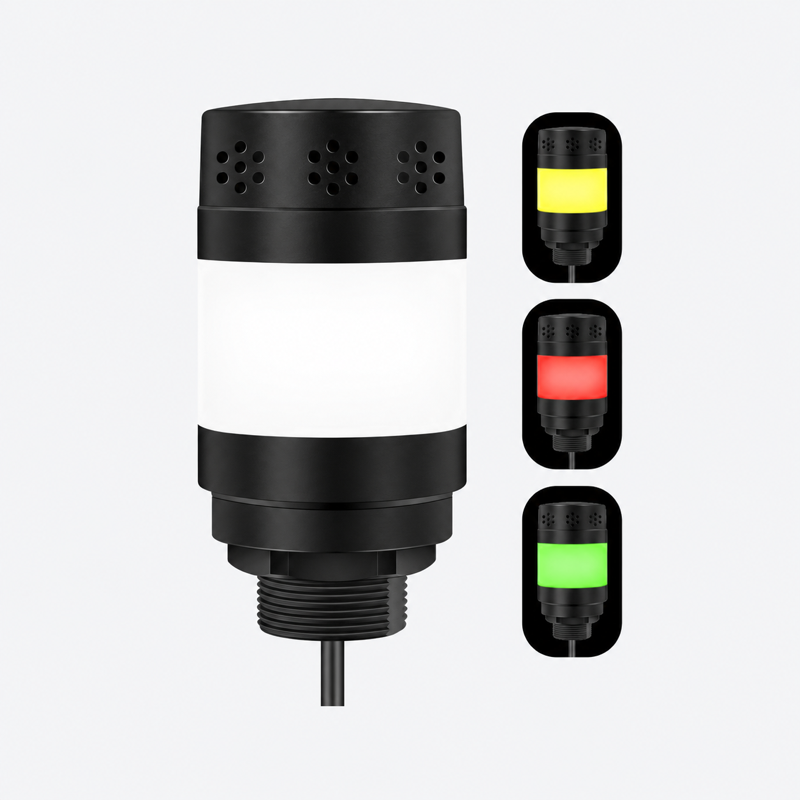

Appearance
Y811-52AV — Compact Sounder-Beacon Specification
Product series: Industrial Audible & Visual Alarm
This specification covers one YenGear model and one configuration.
1. Product definition
Y811-52AV is a compact three-color sounder-beacon with RS485 control. The supplied parameter table lists a custom RS485 protocol option and a standard Modbus protocol option. The Modbus reference confirms Modbus RTU at 9600 bit/s.
2. Ordering configuration
| YenGear model | Configuration |
|---|---|
| Y811-52AV | One compact RS485 sounder-beacon configuration with custom or standard Modbus control |
3. Technical specifications
| Parameter | Specification |
|---|---|
| Product function | Audible-visual alarm with serial control |
| Communication interface | RS485 |
| Protocol options | Custom RS485 protocol or standard Modbus RTU |
| Baud rate | 9600 bit/s for the supplied Modbus reference |
| Modbus frame format | Address (1 byte), function code (1 byte), start address (2 bytes), data (N bytes), and CRC (2 bytes; CRC-L then CRC-H) |
| Output power | 1 W |
| Memory | 4 MB |
| Supply | DC 9-30 V |
| Enclosure material | ABS |
| Mounting | Panel mounting or bracket mounting |
| Mounting hole diameter | 30 mm |
| Light body diameter | 52 mm |
| Dimensions | 52 x 104 mm |
| Ingress protection | Non-waterproof |
| Light colors | Yellow, green, and red |
| Light modes | Flashing, burst flashing, and steady |
| Lampshade material | PC |
| Operating temperature | -20°C to 60°C |
| Trigger inputs | Not stated in the supplied source material |
4. Key features
- Compact enclosure for equipment-level warning
- RS485 control with custom or standard Modbus protocol options
- 9600 bit/s Modbus communication
- Yellow, green, and red light colors with flashing, burst-flashing, and steady modes
- Separate audible and visual warning output
- DC 9-30 V supply
- Panel or bracket mounting
5. Integration notes
The supplied parameter table confirms RS485 control, DC 9-30 V supply, three light colors, three light modes, 30 mm mounting-hole diameter, 52 mm light-body diameter, PC lampshade material, a -20°C to 60°C operating temperature, and panel or bracket mounting. It lists both a custom RS485 protocol option and a standard Modbus protocol option. The Modbus reference confirms Modbus RTU at 9600 bit/s and shows a frame containing the device address, function code, start address, data, and CRC-L/CRC-H bytes. Use the protocol and delivered configuration that match the ordered unit.
The extended standard Modbus reference also lists commands for looping all tracks, stopping playback, looping a folder, random playback, looping the current track, setting the device address (0xC0), independently controlling warning lamp D1 (0xC2), and querying the current track, playback status, volume, file count, and sound/light status with function 03H. These commands apply to the standard Modbus profile only; confirm the delivered protocol option and response definition before integration.
Do not apply the Y811-52V or Y811-75AV register map to Y811-52AV without confirmation.
6. Confirmation items
- Selected protocol, default device address, data bits, parity, stop bits, and complete CRC calculation details
- Connector pinout and A/B labeling for the delivered unit
- Power input wiring for DC 9-30 V
- Sound level, trigger inputs, connector definition, and enclosure drawing
- Final non-waterproof enclosure marking
7. Source basis
- Supplied product catalog, page 17
- Supplied model parameter table: light colors and modes, control options, supply, mounting, materials, dimensions, and temperature
- Supplied Modbus protocol reference: RS485 interface, 9600 bit/s, frame structure, playback/light-control commands, and query commands
- Product series: Industrial Audible & Visual Alarm
- Model: Y811-52AV
- Y811-52AV Technical Manual
