MiniLink Compact Module Family

MiniLink includes Y201 compact serial DTUs and Y301-110/020/200 I/O modules. Use Y201 to connect serial equipment to a network and Y301 to add digital inputs or relay outputs.

Mini DTU (Y201)

	Model	Network Type	Serial Interface	Typical Application	Documentation

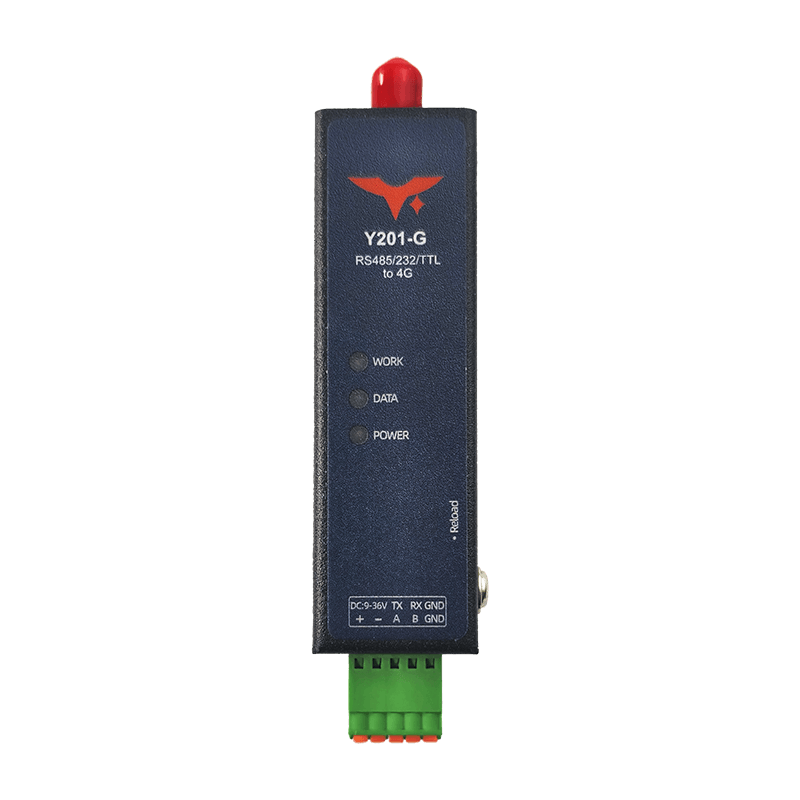

	Y201-G	4G	1 port: RS232 or RS485 or TTL	Bringing field serial devices to the cloud over 4G	Specification, Technical Manual

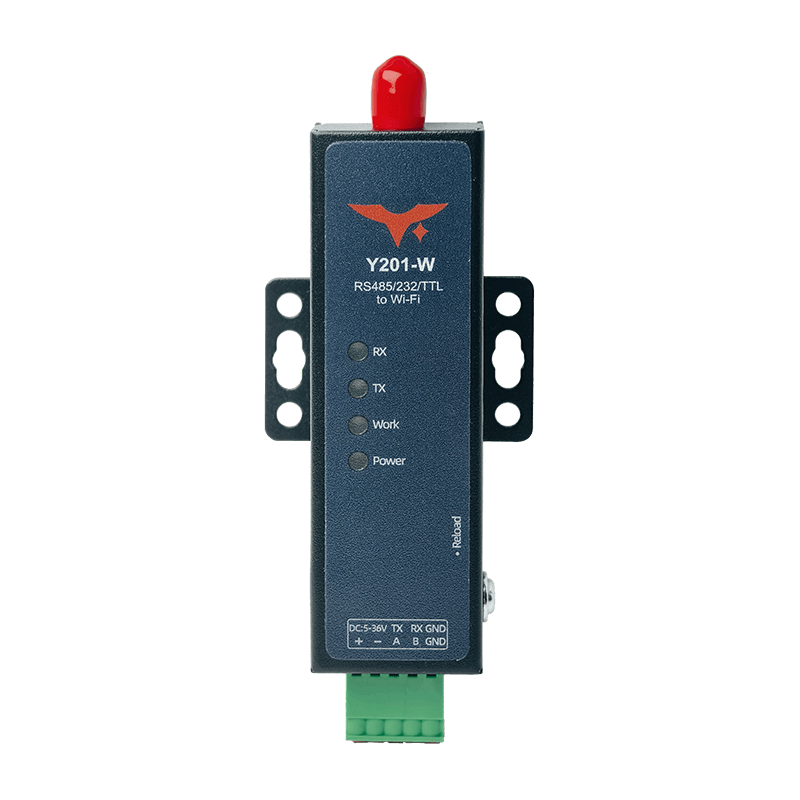

	Y201-W	Wi-Fi	1 port: RS232 or RS485 or TTL	Wireless access for local area networks	Specification, Technical Manual

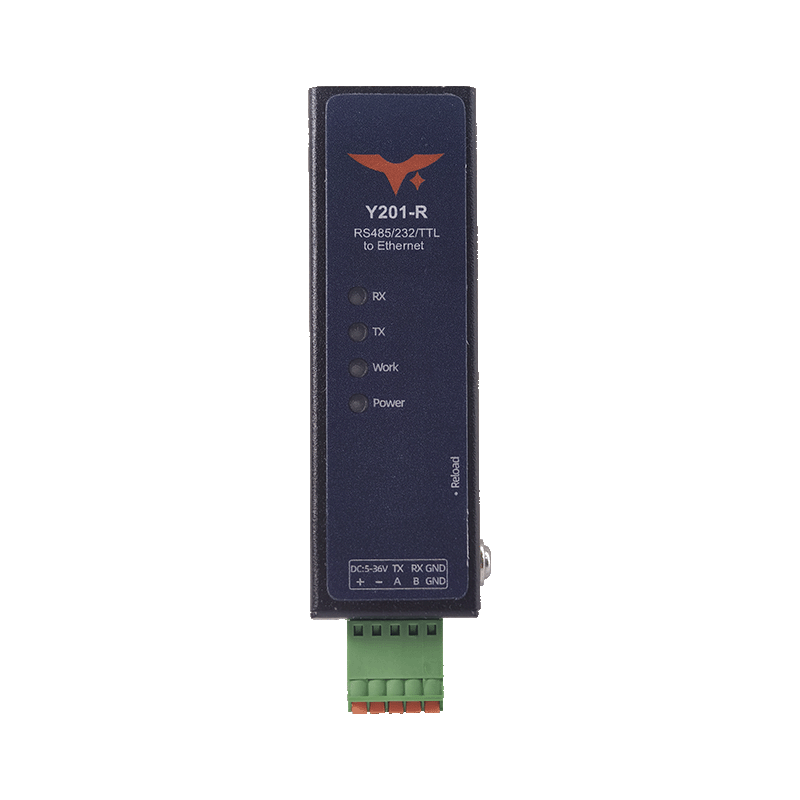

	Y201-R	Ethernet	RS232 or RS485 or TTL, by ordered version	Wired industrial network access	Specification, Technical Manual

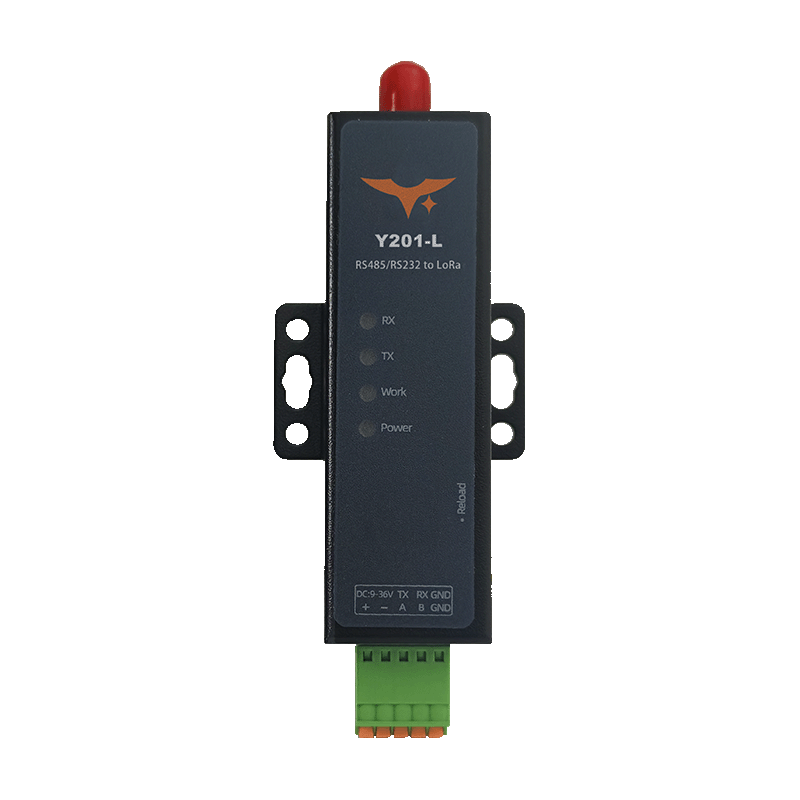

	Y201-L	LoRa	1 port: RS232 or RS485 or 3.3 V TTL	Low-power, long-range wireless data acquisition	Specification, Technical Manual

Mini I/O (Y301-110/020/200)

	Model	DI	DO	AI	AO	Typical Application	Documentation

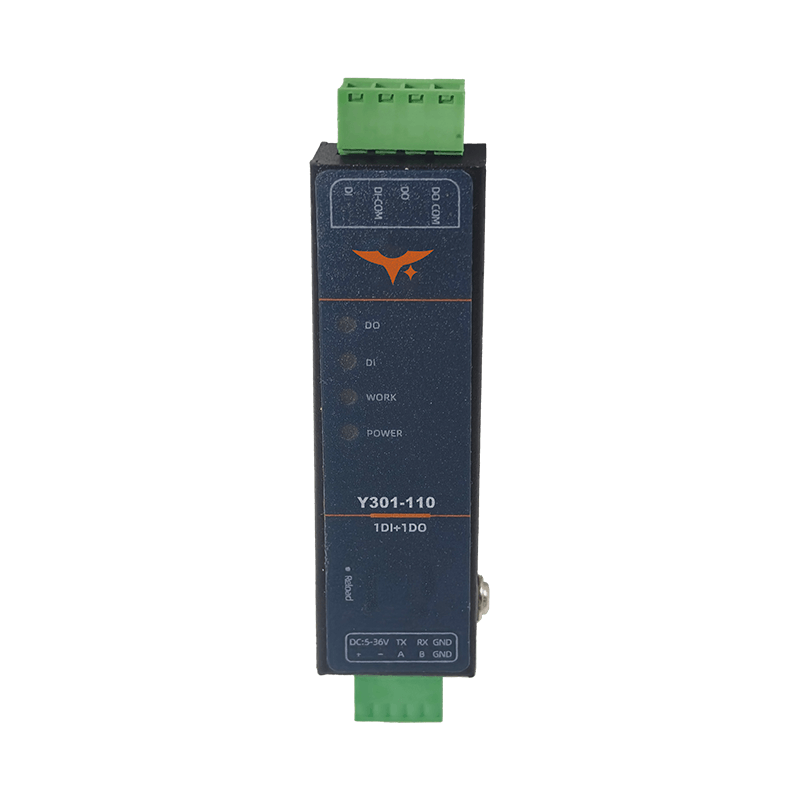

	Y301-110	1	1	0	0	Single input plus single relay output linkage	Specification, Technical Manual
	Y301-020	0	2	0	0	Dual relay control	Specification, Technical Manual
	Y301-200	2	0	0	0	Dual digital input acquisition	Specification, Technical Manual

Selection Guide

1. Select the Y201 model by network type first: choose Y201-G for cellular public networks, Y201-W for wireless LAN access, Y201-R for wired Ethernet, and Y201-L for long-range low-speed wireless links.
2. Then select the Y301 model by I/O requirement: choose Y301-110 when both input and output are needed, Y301-020 for output-only control, and Y301-200 for status acquisition only.
3. During project implementation, review the corresponding technical manual first for default parameters, register mapping, and wiring diagrams to reduce commissioning time.
